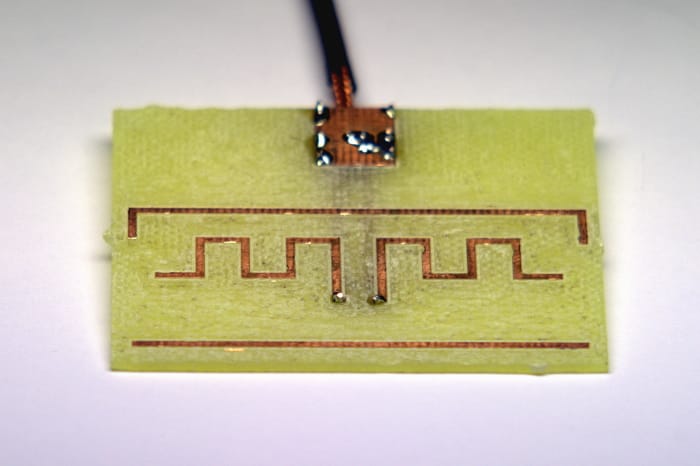

A 2.4 GHz Yagi type Patch Antenna
![](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2F2G4_yagi-pic.1ee1ad46.jpg&w=3840&q=80)
![](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2F2G4_yagi-sim.f409f3b6.jpg&w=3840&q=80)
The idea for this antenna design came into my mind when I was considering to install a WLAN router into a corner of a room. I thought that a WLAN coverage on the other side of the wall, where nobody lives, would have been a waste of power.

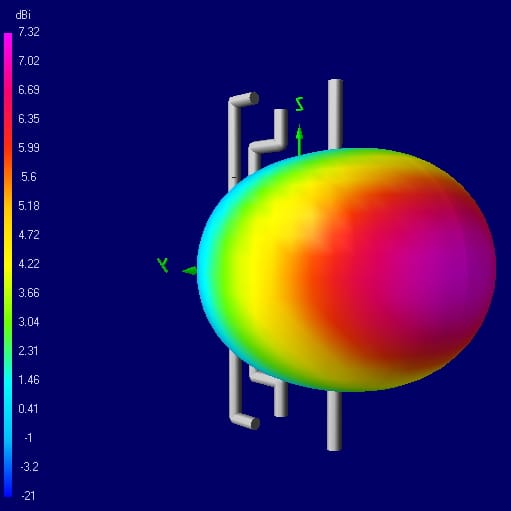

The antenna design was simulated in free space because 4NEC2 doesn't support simulating substrates, and I didn't have access to any better simulation software at that time. I then matched the design for the FR4 substrate manually and designed the PCB in EAGLE.
Files
- 2G4_yagi.zip EAGLE files for the PCB
